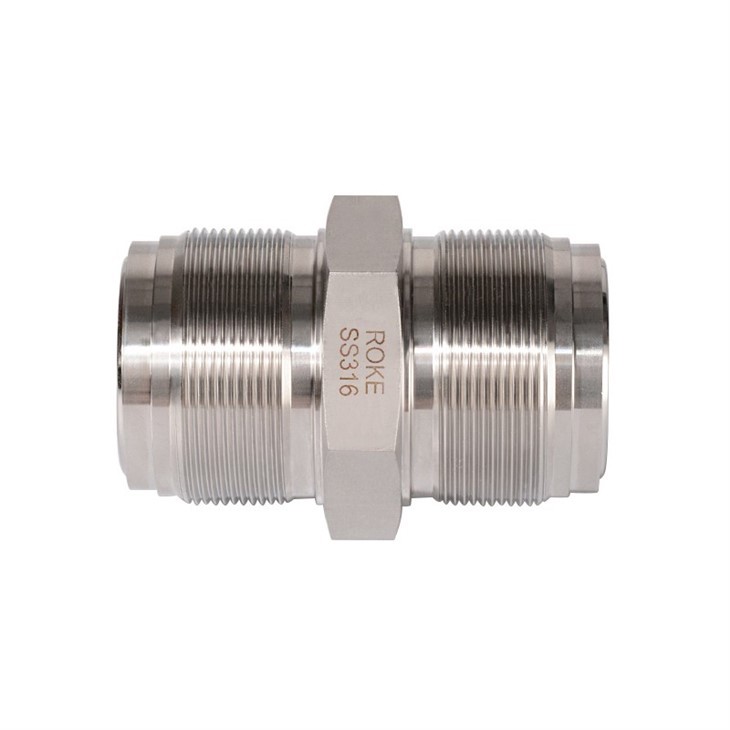

Hlau Gasket Lub ntsej muag Sealing VCR Hex Nipple
Stainless hlau 316 Hlau Gasket Lub ntsej muag Sealing VCR Txiv neej Hex Nipple Fitting
Cov ntsiab lus ceev
-
Khoom siv: Stainless hlau
-
Cov txheej txheem: Forged
-
Qhov chaw keeb kwm: Jiangsu, Suav teb (Mainland)
-
Qauv nab npawb: Straight Txiv neej Hex Nipple
-
Hom Lub Npe: Roke
-
Kev sib txuas: Txiv neej xov
-
Customed: Muaj
-
Siv: roj, roj, dej, thiab lwm yam.
-
Ua haujlwm siab: 6000psi
-
Daim ntawv pov thawj: CCS CE & ISO9001
Hex Npib
|
Txiv neej NPT Xov |
|||||||||
|
P-NPT Loj |
Px-NPT Loj |
Basic Ordering Number |
Dimension, nyob rau hauv (mm) |
Ua haujlwm siab psig (bar) |
|||||
|
L |
F (Hex) |
B |
Bx |
E |
316 SS, hlau |
tooj dag |
|||
|
1/16 |
1/16 |
-THN-MN1 |
1.01 (25.6) |
0.31 (7.9) |
0.38 (9.7) |
0.38 (9.7) |
0.12 (3.0) |
11000 (757) |
5500 (378) |
|
1/8 |
1/16 |
-THN-MN2-MN1 |
1.01 (25.6) |
0.44 (11.1) |
0.38 (9.7) |
0.38 (9.7) |
0.12 (3.0) |
11000 (757) |
5500 (378) |
|
1/8 |
1/8 |
-THN-MN 2 |
1.01 (25.6) |
0.44 (11.1) |
0.38 (9.7) |
0.38 (9.7) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
1/4 |
1/16 |
-THN-MN4-MN1 |
1.22 (31.0) |
0.56 (14.3) |
0.56 (14.2) |
0.38 (9.7) |
0.12 (3.0) |
11000 (757) |
5500 (378) |
|
1/4 |
1/8 |
-THN-MN4-MN2 |
1.22 (31.0) |
0.56 (14.3) |
0.56 (14.2) |
0.38 (9.7) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
1/4 |
1/4 |
-THN-MN 4 |
1.40 (35.6) |
0.56 (14.3) |
0.56 (14.2) |
0.56 (14.2) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
3/8 |
1/16 |
-THN-MN6-MN1 |
1. 25(31.8) |
0.69 (17.5) |
0.56 (14.2) |
0.38 (9.7) |
0.12 (3.0) |
11000 (757) |
5500 (378) |
|
3/8 |
1/8 |
-THN-MN6-MN2 |
1.25 (31.8) |
0.69 (17.5) |
0.56 (14.2) |
0.38 (9.7) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
3/8 |
1/4 |
-THN-MN6-MN4 |
1.43 (36.3) |
0.69 (17.5) |
0.56 (14.2) |
0.56 (14.2) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
3/8 |
3/8 |
-THN-MN 6 |
1.43 (36.3) |
0.69 (17.5) |
0.56 (14.2) |
0.56 (14.2) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
1/2 |
1/8 |
-THN-MN8-MN2 |
1.47 (37.3) |
0.87 (22.2) |
0.75 (19.1) |
0.38 (9.7) |
0.19 (4.8) |
7700 (530) |
3800 (261) |
|
1/2 |
1/4 |
-THN-MN8-MN4 |
1.65 (41.9) |
0.87 (22.2) |
0.75 (19.1) |
0.56 (14.2) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
1/2 |
3/8 |
-THN-MN8-MN6 |
1.65 (41.9) |
0.87 (22.2) |
0.75 (19.1) |
0.56 (14.2) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
1/2 |
1/2 |
-THN-MN 8 |
1.84 (46.7) |
0.87 (22.2) |
0.75 (19.1) |
0.75 (19.1) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
3/4 |
1/8 |
-THN-MN12-MN2 |
1.59 (40.4) |
1.06 (27.0) |
0.75 (19.1) |
0.38 (9.7) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
3/4 |
1/4 |
-THN-MN12-MN4 |
1.65 (41.9) |
1.06 (27.0) |
0.75 (19.1) |
0.56 (14.2) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
3/4 |
3/8 |
-THN-MN12-MN6 |
1.78 (45.2) |
1.06 (27.0) |
0.75 (19.1) |
0.56 (14.2) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
3/4 |
1/2 |
-THN-MN12-MN8 |
1.84 (46.7) |
1.06 (27.0) |
0.75 (19.1) |
0.75 (19.1) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
3/4 |
3/4 |
-THN-MN 12 |
1.84 (46.7) |
1.06 (27.0) |
0.75 (19.1) |
0.75 (19.1) |
0.62 (15.7) |
7300 (502) |
3600 (248) |
|
1 |
1/8 |
-THN-MN16-MN2 |
1.78 (45.2) |
1.37 (34.9) |
0.94 (23.9) |
0.38 (9.7) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
1 |
1/4 |
-THN-MN16-MN4 |
1.94 (49.3) |
1.37 (34.9) |
0.94 (23.9) |
0.56 (14.2) |
0.28 (7.1) |
5300 (365) |
2600 (179) |
|
1 |
3/8 |
-THN-MN16-MN6 |
1.97 (50.0) |
1.37 (34.9) |
0.94 (23.9) |
0.56 (14.2) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
1 |
1/2 |
-THN-MN16-MN8 |
2.13 (54.1) |
1.37 (34.9) |
0.94 (23.9) |
0.75 (19.1) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
1 |
3/4 |
-THN-MN16-MN12 |
2.13 (54.1) |
1.37 (34.9) |
0.94 (23.9) |
0.75 (19.1) |
0.62 (15.7) |
7300 (502) |
3600 (248) |
|
1 |
1 |
-THN-MN 16 |
2.32 (58.9) |
1.37 (34.9) |
0.94 (23.9) |
0.94 (23.9) |
0.88 (22.4) |
5300 (365) |
2600 (179) |
|
1 1/4 |
1 |
-THN-MN20-MN16 |
2.45 (62.2) |
1.75 (44.5) |
0.94 (23.9) |
0.94 (23.9) |
0.88 (22.4) |
5300 (365) |
2600 (179) |
|
1 1/4 |
1 1/4 |
-THN-MN 20 |
2.48 (62.9) |
1.75 (44.5) |
0.94 (23.9) |
0.94 (23.9) |
1.13 (28.6) |
6000 (410) |
3000 (200) |
|
1 1/2 |
1 1/2 |
-THN-MN 24 |
2.61 (66.3) |
2.00 (50.8) |
1.03 (26.2) |
1.03 (26.2) |
1.34 (34.0) |
5000 (344) |
2500 (172) |
|
2 |
2 |
-THN-MN32 |
3.06 (77.7) |
2.75 (69.9) |
1.03 (26.2) |
1.03 (26.2) |
1.77 (45.0) |
3900 (268) |
1900 (130) |
Cim npe nrov: hlau gasket ntsej muag sealing vcr hex txiv mis Tuam Tshoj, Hoobkas, customized, pheej yig, luv nqi, dawb qauv, ua nyob rau hauv Suav teb
