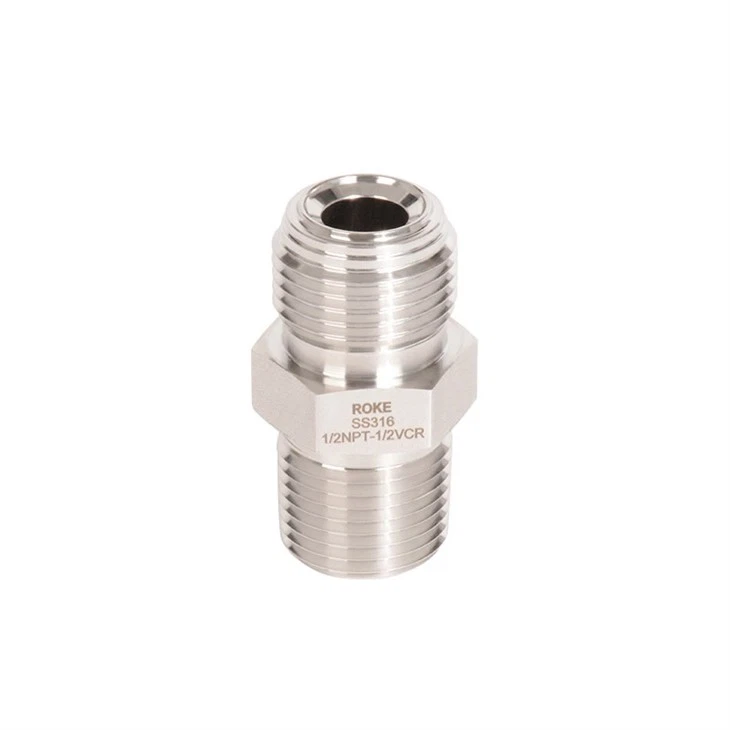

Lub ntsej muag Sealing VCR Txiv neej Xov Hex Nipple
Stainless hlau 316 Hlau Gasket Lub ntsej muag Sealing VCR Nrog Txiv neej Xov Hex Txiv Neej Haum
Cov ntsiab lus ceev
-
Khoom siv: Stainless hlau
-
Cov txheej txheem: Forged
-
Qhov chaw keeb kwm: Jiangsu, Suav teb (Mainland)
-
Qauv nab npawb: Straight Txiv neej Hex Nipple
-
Hom Lub Npe: Roke
-
Kev sib txuas: Txiv neej xov
-
Customed: Muaj
-
Siv: roj, roj, dej, thiab lwm yam.
-
Ua haujlwm siab: 6000psi
-
Daim ntawv pov thawj: CCS CE & ISO9001
Hex Npib
|
Txiv neej NPT Xov |
|||||||||
|
P-NPT Loj |
Px-NPT Loj |
Basic Ordering Number |
Dimension, nyob rau hauv (mm) |
Ua haujlwm siab psig (bar) |
|||||
|
L |
F (Hex) |
B |
Bx |
E |
316 SS, hlau |
tooj dag |
|||
|
1/16 |
1/16 |
-THN-MN1 |
1.01 (25.6) |
0.31 (7.9) |
0.38 (9.7) |
0.38 (9.7) |
0.12 (3.0) |
11000 (757) |
5500 (378) |
|
1/8 |
1/16 |
-THN-MN2-MN1 |
1.01 (25.6) |
0.44 (11.1) |
0.38 (9.7) |
0.38 (9.7) |
0.12 (3.0) |
11000 (757) |
5500 (378) |
|
1/8 |
1/8 |
-THN-MN 2 |
1.01 (25.6) |
0.44 (11.1) |
0.38 (9.7) |
0.38 (9.7) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
1/4 |
1/16 |
-THN-MN4-MN1 |
1.22 (31.0) |
0.56 (14.3) |
0.56 (14.2) |
0.38 (9.7) |
0.12 (3.0) |
11000 (757) |
5500 (378) |
|
1/4 |
1/8 |
-THN-MN4-MN2 |
1.22 (31.0) |
0.56 (14.3) |
0.56 (14.2) |
0.38 (9.7) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
1/4 |
1/4 |
-THN-MN 4 |
1.40 (35.6) |
0.56 (14.3) |
0.56 (14.2) |
0.56 (14.2) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
3/8 |
1/16 |
-THN-MN6-MN1 |
1. 25(31.8) |
0.69 (17.5) |
0.56 (14.2) |
0.38 (9.7) |
0.12 (3.0) |
11000 (757) |
5500 (378) |
|
3/8 |
1/8 |
-THN-MN6-MN2 |
1.25 (31.8) |
0.69 (17.5) |
0.56 (14.2) |
0.38 (9.7) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
3/8 |
1/4 |
-THN-MN6-MN4 |
1.43 (36.3) |
0.69 (17.5) |
0.56 (14.2) |
0.56 (14.2) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
3/8 |
3/8 |
-THN-MN 6 |
1.43 (36.3) |
0.69 (17.5) |
0.56 (14.2) |
0.56 (14.2) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
1/2 |
1/8 |
-THN-MN8-MN2 |
1.47 (37.3) |
0.87 (22.2) |
0.75 (19.1) |
0.38 (9.7) |
0.19 (4.8) |
7700 (530) |
3800 (261) |
|
1/2 |
1/4 |
-THN-MN8-MN4 |
1.65 (41.9) |
0.87 (22.2) |
0.75 (19.1) |
0.56 (14.2) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
1/2 |
3/8 |
-THN-MN8-MN6 |
1.65 (41.9) |
0.87 (22.2) |
0.75 (19.1) |
0.56 (14.2) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
1/2 |
1/2 |
-THN-MN 8 |
1.84 (46.7) |
0.87 (22.2) |
0.75 (19.1) |
0.75 (19.1) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
3/4 |
1/8 |
-THN-MN12-MN2 |
1.59 (40.4) |
1.06 (27.0) |
0.75 (19.1) |
0.38 (9.7) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
3/4 |
1/4 |
-THN-MN12-MN4 |
1.65 (41.9) |
1.06 (27.0) |
0.75 (19.1) |
0.56 (14.2) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
3/4 |
3/8 |
-THN-MN12-MN6 |
1.78 (45.2) |
1.06 (27.0) |
0.75 (19.1) |
0.56 (14.2) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
3/4 |
1/2 |
-THN-MN12-MN8 |
1.84 (46.7) |
1.06 (27.0) |
0.75 (19.1) |
0.75 (19.1) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
3/4 |
3/4 |
-THN-MN 12 |
1.84 (46.7) |
1.06 (27.0) |
0.75 (19.1) |
0.75 (19.1) |
0.62 (15.7) |
7300 (502) |
3600 (248) |
|
1 |
1/8 |
-THN-MN16-MN2 |
1.78 (45.2) |
1.37 (34.9) |
0.94 (23.9) |
0.38 (9.7) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
1 |
1/4 |
-THN-MN16-MN4 |
1.94 (49.3) |
1.37 (34.9) |
0.94 (23.9) |
0.56 (14.2) |
0.28 (7.1) |
5300 (365) |
2600 (179) |
|
1 |
3/8 |
-THN-MN16-MN6 |
1.97 (50.0) |
1.37 (34.9) |
0.94 (23.9) |
0.56 (14.2) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
1 |
1/2 |
-THN-MN16-MN8 |
2.13 (54.1) |
1.37 (34.9) |
0.94 (23.9) |
0.75 (19.1) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
1 |
3/4 |
-THN-MN16-MN12 |
2.13 (54.1) |
1.37 (34.9) |
0.94 (23.9) |
0.75 (19.1) |
0.62 (15.7) |
7300 (502) |
3600 (248) |
|
1 |
1 |
-THN-MN 16 |
2.32 (58.9) |
1.37 (34.9) |
0.94 (23.9) |
0.94 (23.9) |
0.88 (22.4) |
5300 (365) |
2600 (179) |
|
1 1/4 |
1 |
-THN-MN20-MN16 |
2.45 (62.2) |
1.75 (44.5) |
0.94 (23.9) |
0.94 (23.9) |
0.88 (22.4) |
5300 (365) |
2600 (179) |
|
1 1/4 |
1 1/4 |
-THN-MN 20 |
2.48 (62.9) |
1.75 (44.5) |
0.94 (23.9) |
0.94 (23.9) |
1.13 (28.6) |
6000 (410) |
3000 (200) |
|
1 1/2 |
1 1/2 |
-THN-MN 24 |
2.61 (66.3) |
2.00 (50.8) |
1.03 (26.2) |
1.03 (26.2) |
1.34 (34.0) |
5000 (344) |
2500 (172) |
|
2 |
2 |
-THN-MN32 |
3.06 (77.7) |
2.75 (69.9) |
1.03 (26.2) |
1.03 (26.2) |
1.77 (45.0) |
3900 (268) |
1900 (130) |
